Category Archives: Record of recent installation

[Installation Record]New type Urban-garbage crusher with inverter control

Considering change of incineration volume in the future,  we developed new type hi-power urban-garbage crusher by inverter control drive unit, to realize changeable capacity of crushing after installation.

[Model]Helios7015type double axle direct feeding type crusher(inverter control)

[Capacity]15㎥/h

[Drive] 37kW inverter control

[Size]4695mm(L) x 2521mm(W) x 1236mm(H)

[Weight] 18ton(body)

[Installation system] Crusher x 1 unit(with foreign material ejection system), feeding hopper with bridge breaker x 1 unit

[Area] Nara, Japan

Crusher

Crusher

appearance of feeding hopper with Bridge breaker

appearance of feeding hopper with Bridge breaker

Hard-facing coating cutter

Hard-facing coating cutter





[Installation record] Hi-power Urban-garbage crusher in Kyushu Area, Japan

For improvement of efficiency for incineration system, helios 70type crusher was added in existing plant system, to adjust the kinds of garbage,  we added Separately feeding system and foreign material ejection system, by hi-torque 90kN.m.

[Model] Helios7028 double axle cutting type urban garbage crusher

[Capacity] 28㎥

[Drive] 55kw Electric

[Size] 4600mm(L) x 2537mm(W) x 1480mm(H)

[Weight] 17ton(body)

[Installation system] Crusher x 1unit(with foureign material ejection system), Separately feeding device x 1unit, Feeding hopper x 1unit

 [Area] Kyushu area, Japan

Separately feeding device

Separately feeding device

Feeding Hopper

Feeding Hopper

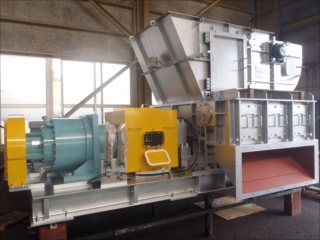

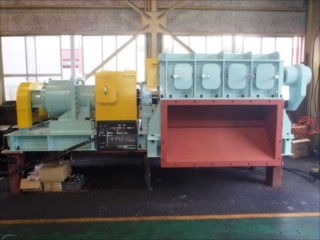

Crusher with foreign material ejection system

Crusher with foreign material ejection system

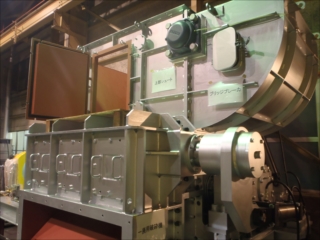

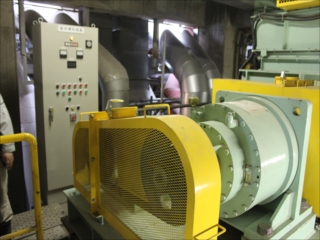

Crusher installed

Crusher installed

Feeding system installed

Feeding system installed

Crusher installed

Crusher installed



[Installation Record]Large-garbage crusher in Kyushu Area,Japan

whole customized design for a most compact large-garbage crusher with Hi-power,easy to recover cutting ability,by exchangeable bolt-mounted cutter chip .

[Model Type] helios3020 double axle cutting large-garbage crusher

[Capacity]20㎥

[Drive] 90kW Hydraulic motor

[Size] 3600mm(L) x 2350mm(W) x 1151mm(H)

[Weight] 16ton

[Installation] Crusher x 1unit, Hydraulic Drive unit x 1unit, feeding hopper with Pushing unit x 1unit, crusher base mount x 1set

[Area] Kyushu area,Japan

Compact design less than 1000mm than existing model

Compact design less than 1000mm than existing model

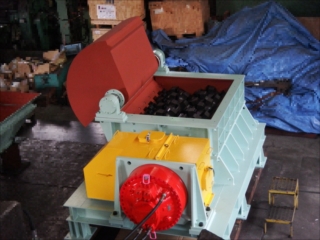

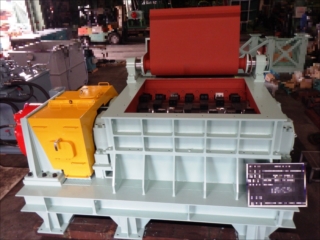

Cutter-Chip type crusher

Cutter-Chip type crusher

Appearance

Appearance
